Holosun 507 Comp vs Vortex Defender XL: Which Is the King of Big-Window Red Dots?

We may earn revenue from the products available on this page and participate in affiliate programs. Learn More ›

If you’re in the market for a large-window pistol red dot, the Holosun 507 Comp and the Vortex Defender XL are the two top options to consider (at least without spending Trijicon SRO money). They’re both reliable, have generous-sized windows, and are generally good red dots. So, which one should you buy? Here’s a breakdown of the key differences and similarities.

Durability

I have about 5,000 rounds on the Vortex Defender XL and 2,000 on the Holosun 507 Comp. But it seems I’d need to multiply those round counts by at least three to get close to seeing a failure. If you want to hear the perspective of people with high-round counts on these optics, check out this video from Joel Park and this video from Brantley Merriam.

While I can’t blow through ammo like a pro shooter, gravity is free. So, I dropped both optics on concrete from waist height with a Double Alpha dry-fire mag inserted to simulate loaded weight. Both survived the drop test with only cosmetic scratches and no zero shift.

Parallax

Holosun vs Vortex: Testing Parallax at 25 Yards

To test parallax, I clamped the guns into a tripod and set a USPSA target at 25 yards. With the dot at the center of the A zone, I moved my head around and checked for any shift in the point of aim. The Holosun was practically parallax-free at the edges, except for the very top and top-right corner. At those spots, the dot shifted from the center of the A zone to the edge of the A zone. The Defender XL was parallax-free.

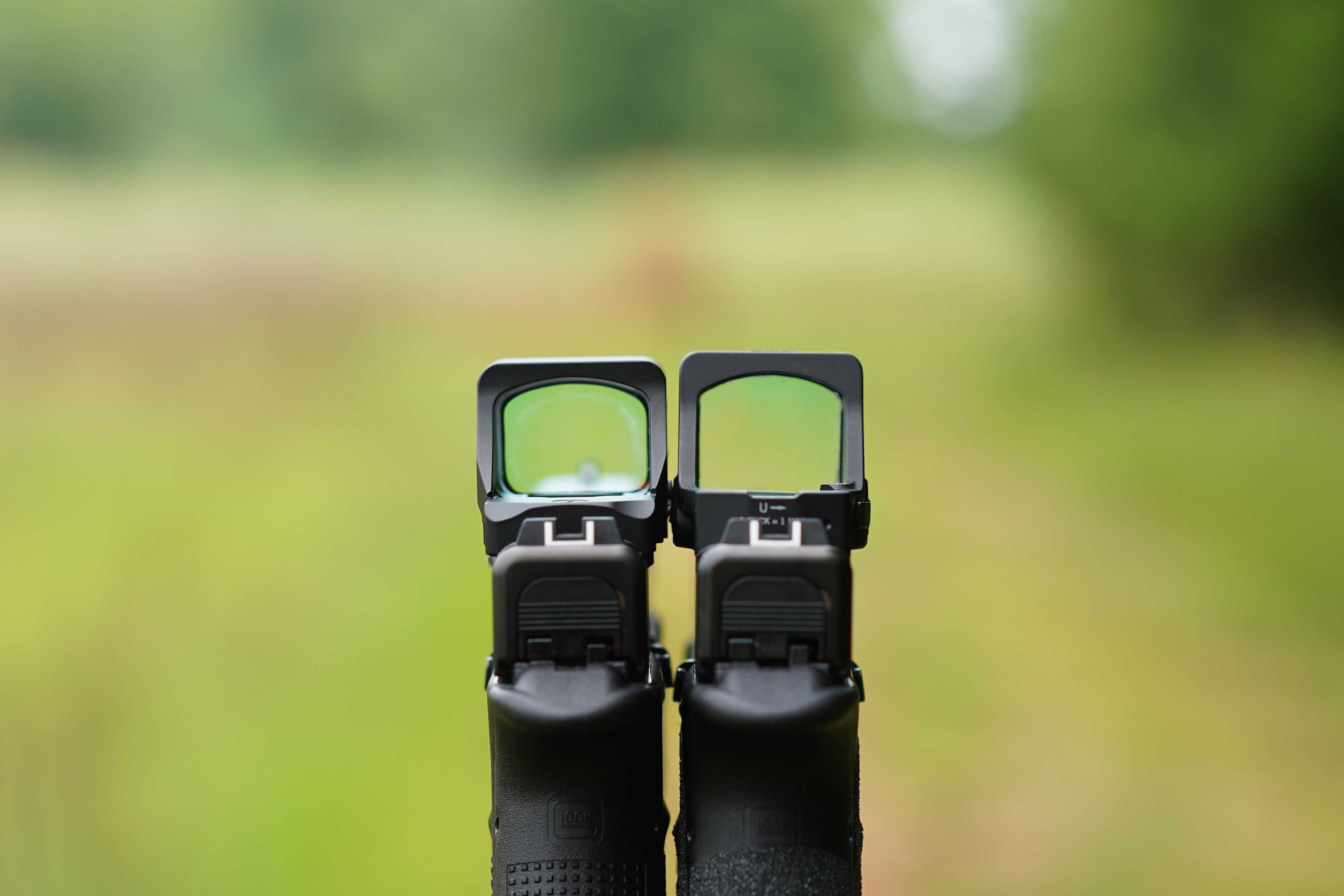

Window Size

Dimensions

I measured the window sizes on both dots with calipers and they’re nearly identical. The biggest difference is that the Vortex is slightly taller than it is wide. The Holosun is wider than it is tall. To me, the Vortex looks and functions like a larger window because most of my dot movement and index issues are vertical.

The Dots

The Defender XL is available in a 2, 5, or 8 MOA red dot. You can also get a green 3 MOA dot. The Holosun 507 Comp has a 2 MOA dot, and you can select an 8 MOA, 20 MOA, or 32 MOA circle. It comes in red, green, or gold reticles. If you don’t mind a 6 MOA dot, you can go with the Holusun 407 Comp, which will save you about $100 and is identical except for its reticle.

If you’re looking for advice on which dot size to choose, I’d go with the 2 MOA option in either optic. The smaller dot allows you to aim more precisely, and you can run it at a brighter setting without the starburst becoming distracting.

But my Vortex XL is the 8 MOA version, and it sits within the credit card on a USPSA target at 25 yards. So in most of the shooting, it’s not holding me back from being precise. The main downside is that I have to monitor the brightness more closely. If it’s set a little too bright, it becomes distracting.

Dot Brightness

Both red dots get bright enough to shoot in full sun. The Holosun’s dot remains crisper at the max brightness setting and doesn’t starburst as badly as the Vortex. The Holosun has 12 brightness settings, and the Vortex has 10. Both red dots have button locks and shake-awake features.

Battery Life

Advertised Battery Life

• Defender XL: 25,000 hours
• 507 Comp: 50,000 hours

The Holosun has double the advertised battery life of the Defender XL, so if you hate changing batteries, the 507 Comp is for you. But the Defender XL’s battery is significantly easier to change. You just depress a pin and the battery door pops open. The 507 Comp uses an annoyingly small flat head screw to secure its battery door. It’s a small quibble you’ll only have to deal with once every five years if the battery lasts as long as advertised.

The Upshot

The performance of these red dots is so similar that the right one for you depends a lot on personal preference, the deals you can find, and the gun you own. The Vortex Defender XL uses a Delta Point Pro footprint and the 507 Comp is compatible with the RMR footprint. That alone will likely be a deciding factor. One note for Glock MOS owners is that the Vortex comes with an excellent MOS mounting plate. That will save you about $100 because you’ll want to buy a plate from a company like Arise or Forward Control Designs if you go with the Holosun for your Glock.

The Vortex costs about $400 and the Holosun 507 Comp costs around $370. But, both routinely go on sale for lower prices. If you still don’t have a clear favorite, just go with the best deal you can find.
